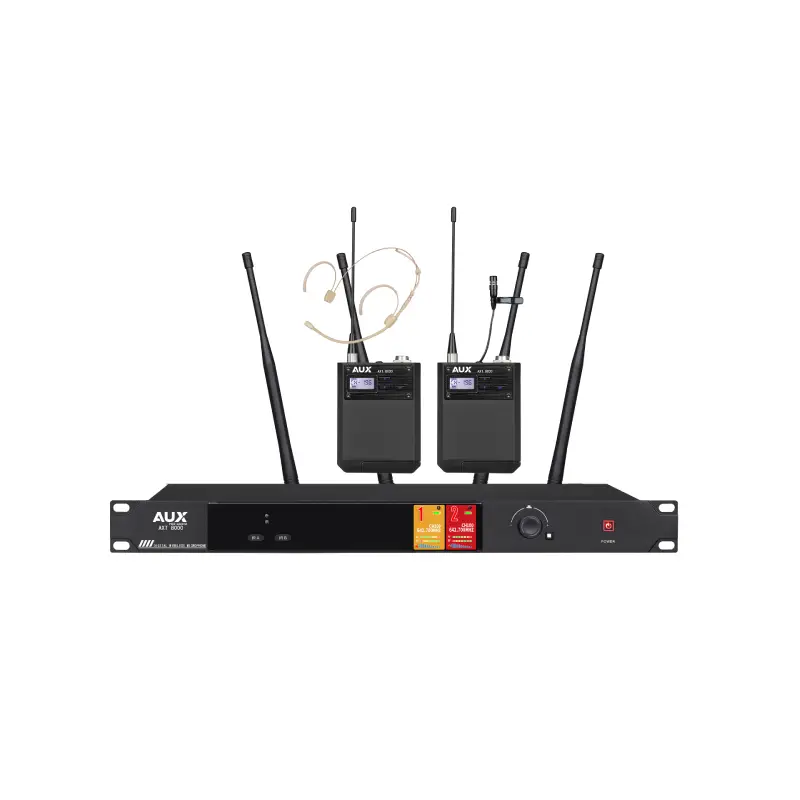

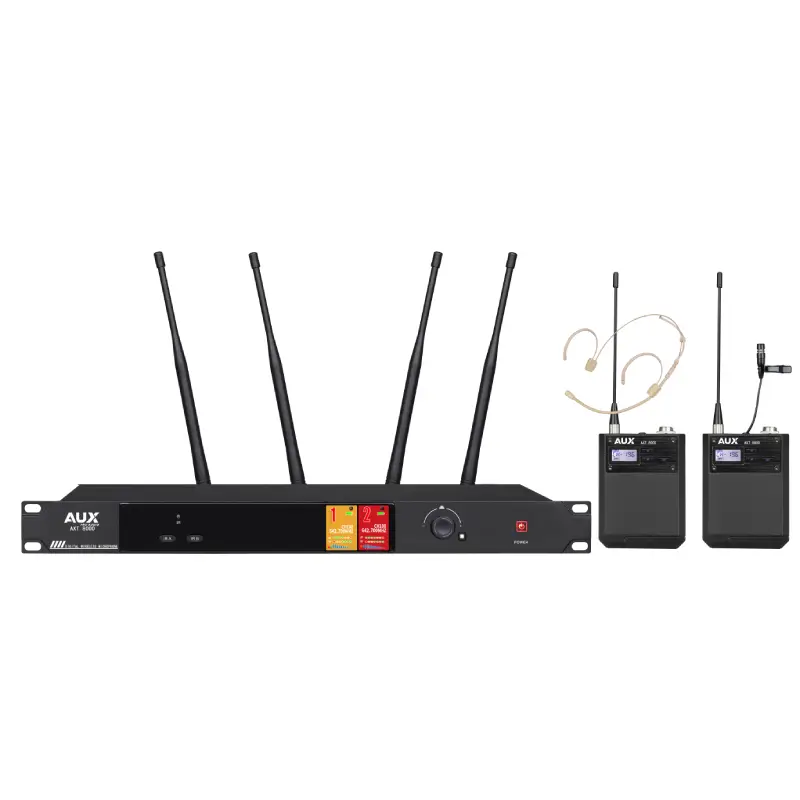

Specifications

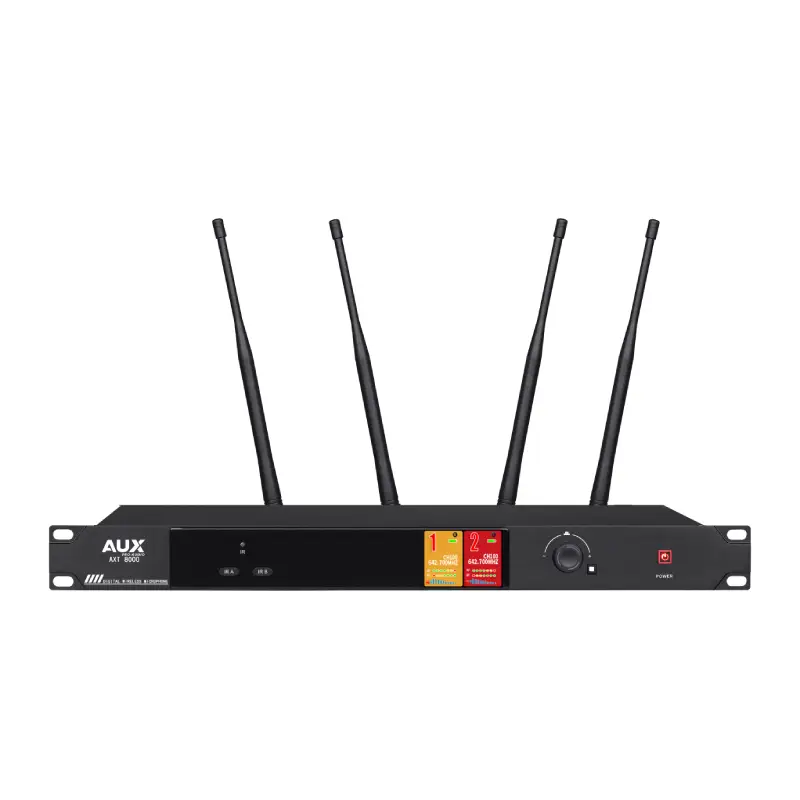

Receiver Unit
- Carrier Frequency Band: 520–670 MHz
- Oscillator Mode: DPLL Digital Phase-Locked Loop
- Bandwidth: 60 MHz
- Frequency Response: 60 Hz – 15 kHz
- Receiver Sensitivity: S/N > 58 dB @ 25 kHz offset, 6 µV input
- Frequency Stability: ±0.005%
- Maximum Deviation: ±45 kHz
- Signal-to-Noise Ratio (Combined): >105 dB
- THD (Combined): <0.7% @ 1 kHz
- Outputs: 2 × Balanced XLR, 1 × Combined 6.35mm + XLR
- Impedance: 680Ω balanced, 2200Ω unbalanced
- Effective Range: 200 m indoors / up to 1000 m in open area
- Display: 2.4″ TFT color screen (signal, volume, channel, frequency)
- Antennas: 4 × rear-mounted rubber antennas
- Power Supply: DC 12V – 1000 mA
Bodypack Transmitter (per pack)
- Carrier Frequency Band: 520–670 MHz
- Modulation: Wideband FM
- Oscillator: DPLL Digital Phase-Locked Loop
- RF Power Output: 18 mW
- Maximum Deviation: ±45 kHz
- Frequency Response: 60 Hz – 16 kHz
- Microphone Type: Condenser (compatible with lapel/headset)
- Current Consumption: 120 mA
- Battery: 2 × AA (1.5V) or 2000 mAh rechargeable
- Battery Life: Up to 13 hours
