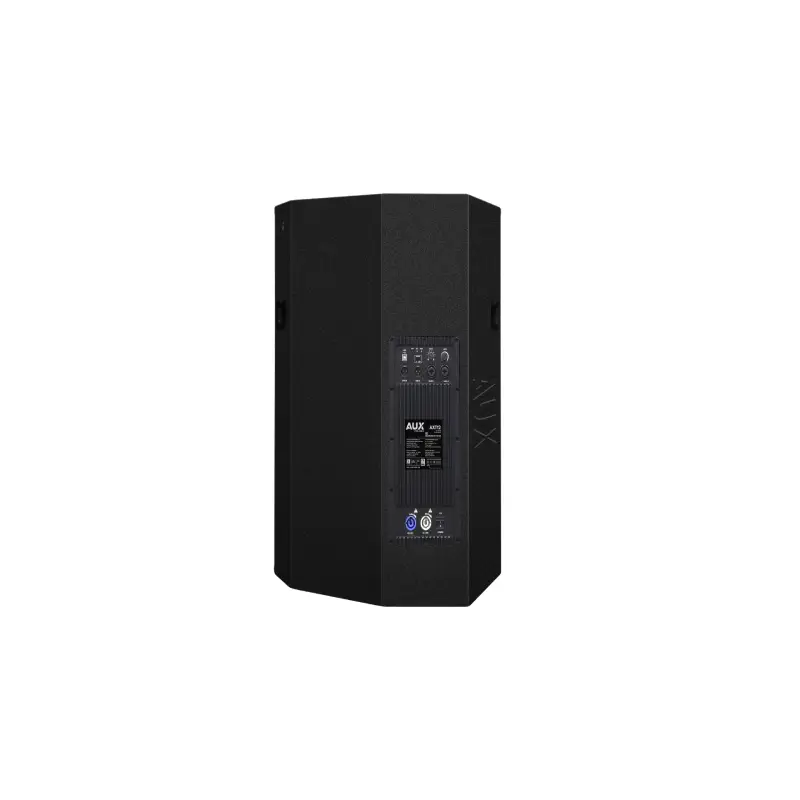

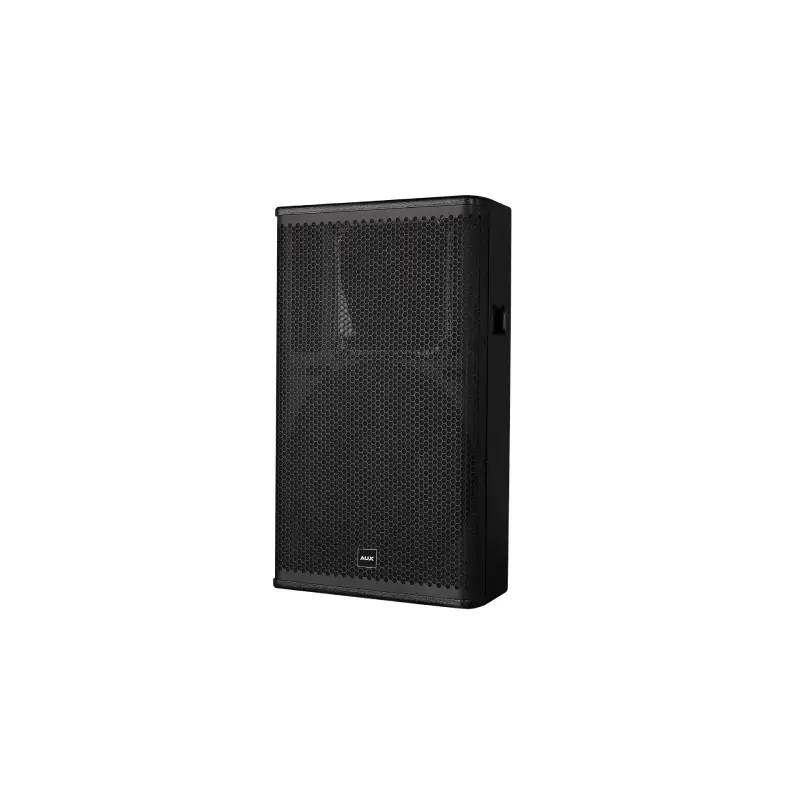

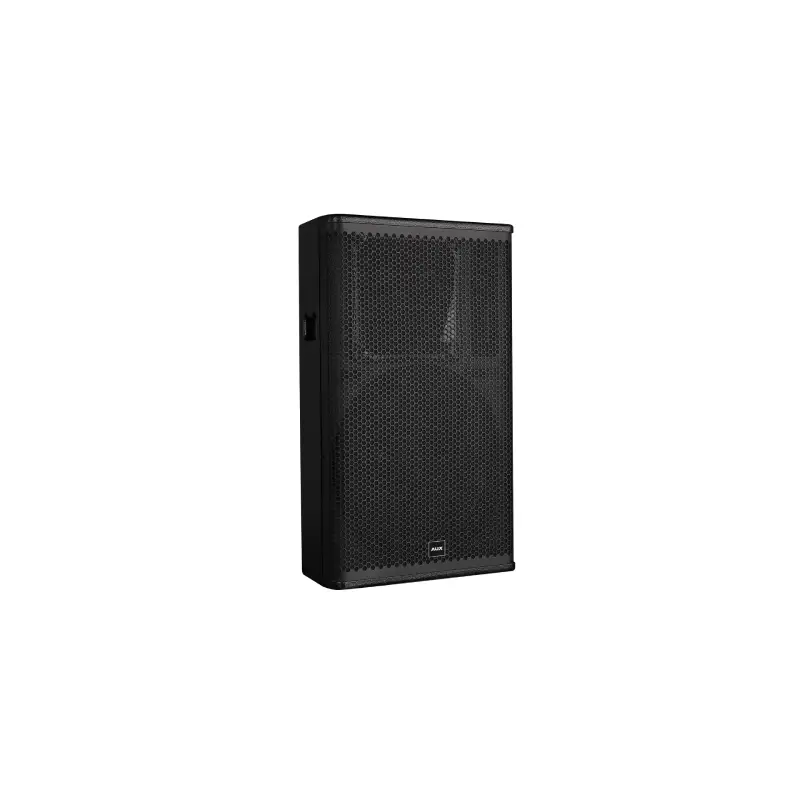

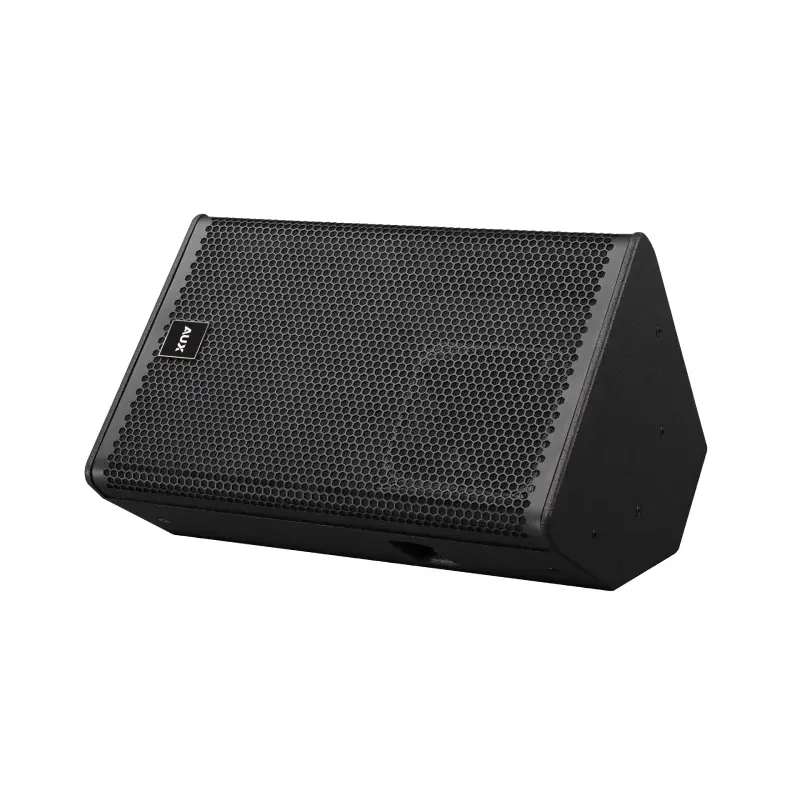

The AXT12 is the AXION Series’ precision tool for articulate, high-energy sound in a compact footprint. Designed for touring professionals and discerning venues, this active 12″ loudspeaker blends power with finesse. Its Class-D amplifier packs enough muscle for punchy, authoritative mids and clear highs, while the lightweight birch ply cabinet ensures effortless portability without sacrificing durability. Perfect for front-of-house, side fill, or high-output floor monitoring, the AXT12 delivers performance you can trust, gig after gig.

Key Highlights
• 12″ woofer with extended low-mid punch and tight transient response
• Class-D power module with generous headroom for clean, dynamic delivery
• Wide dispersion pattern for even coverage in varied setups
• Rugged birch plywood cabinet with touring-grade finish

Specifications

  • Amplifier Program Power: 2000 W Peak / 1000 W RMS – Class D, FIR DSP processing
  • Input Sensitivity: 8 dBu – 1.94 V
  • Input Impedance: 20 kΩ Balanced
  • Mains: 90–265 V, 50/60 Hz (Auto-sensing SMPS)
  • LF Driver: 1 × 12″ ferrite woofer (75 mm / 3″ voice coil, 190 mm magnet)
  • HF Driver: 1 × 44 mm voice coil compression driver (120 mm magnet)
  • Frequency Range (-10 dB): 45 Hz – 20 kHz
  • Frequency Response (±3 dB): 50 Hz – 18 kHz
  • Maximum SPL (1 m): 125 dB peak
  • Coverage Pattern (HxV): 70° × 60°
  • DSP Functions: Gain, low cut, mute, phase, FIR filtering, factory presets + user memories
  • Cabinet: 15 mm premium birch plywood, Polyurea finish
  • Grille: Steel with acoustic foam backing
  • Connectors: 2 × Neutrik® NL4MP
  • Dimensions (H × W × D): 571 × 369 × 335 mm
  • Weight: 17.8kgs
