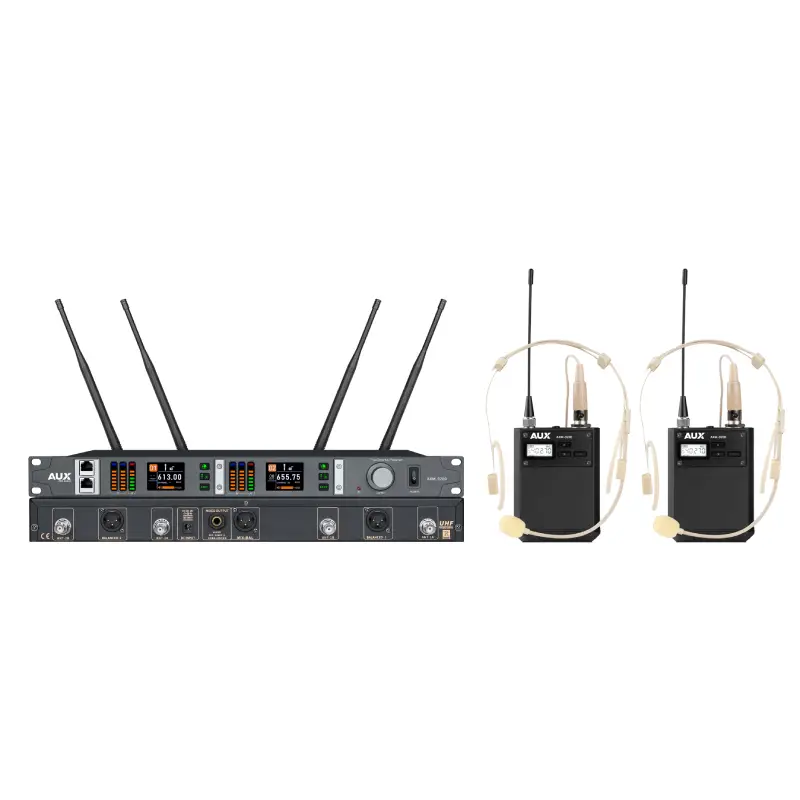

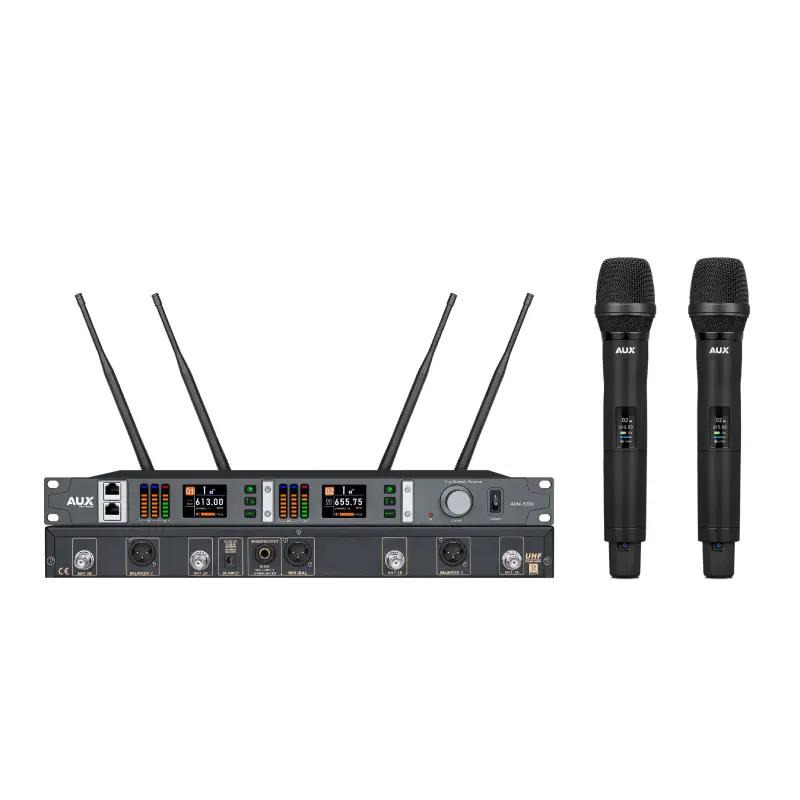

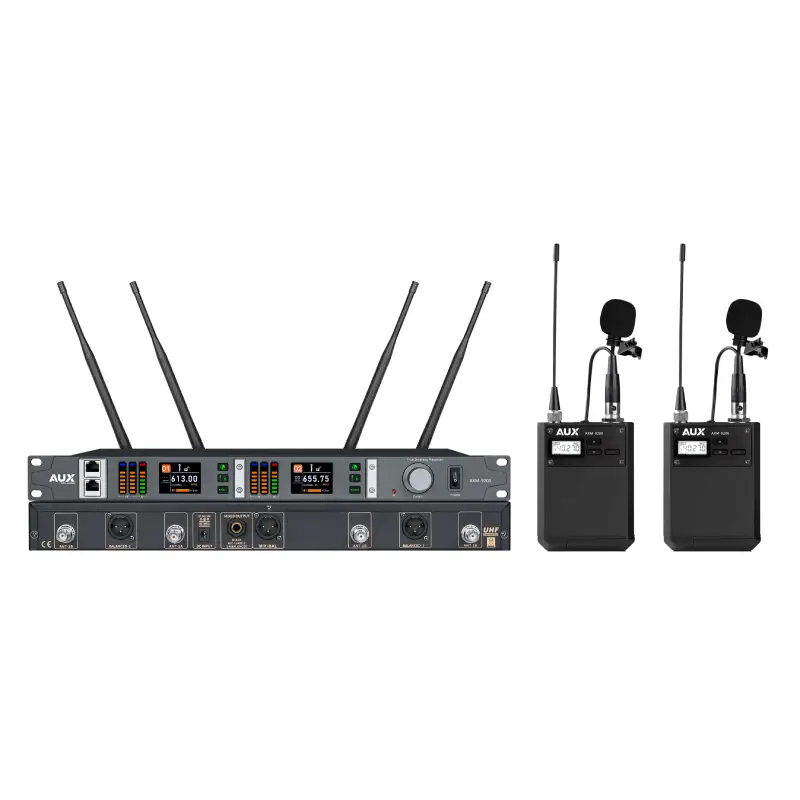

The AUX AXM 9200 is a professional-grade four-channel true diversity wireless microphone system designed for large events, conferences, and demanding live performances. Powered by advanced digital pilot technology and a built-in antenna distribution system, it guarantees interference-free, long-range stability. With its wide 50 MHz tuning bandwidth, intelligent group planning, and customizable EQ, the AXM 9200 delivers pristine audio performance across complex environments. The intuitive full-color TFT display and one-touch frequency scanning make setup fast, reliable, and efficient, even in multi-mic scenarios.

Frequency Range (UHF 610–670 MHz): Up to 1000 adjustable channels (500 per side)
Receiver Technology: True diversity, PLL synthesized, dual conversion with digital ID pilot
Audio Performance: 40 Hz – 18 kHz response, THD ≤0.5%, SNR ≥113 dB
Operating Range: 250–300 m in open spaces; 150–200 m in complex environments
Smart Control: Preset groups, channel ID sync, EQ modes, and spectrum monitoring
Connectivity: Balanced XLR and 6.3 mm outputs with flexible integration

ENQUIRY!

Categories: AUX Xtreme Modulation Series, Microphones

Tag: electronic

Specifications
Reviews (0)

Specifications

System Specifications

Carrier Frequency Range: 610–670 MHz UHF (customizable)
• Number of Channels: 100 + 100 adjustable frequency points
• Bandwidth: 50 MHz
• Modulation: FM
• Oscillator: PLL Phase-Locked Frequency Synthesizer
• Frequency Stability: ±0.0005%
• Sensitivity: >60 dB S/N at 6 dBµV input, 25 kHz offset
• Max. Frequency Deviation: ±45 kHz
• Frequency Response: 60 Hz – 18 kHz (±3 dB)
• Dynamic Range: >108 dB
• THD (1 kHz): <0.4%
• Operating Range: Up to 200 m (open space)
• Output Voltage: Balanced -20 dBV/100 Ω; Unbalanced -4 dBV/5 kΩ
• Output Connectors: 1 × XLR balanced, 1 × 6.3 mm unbalanced
• Power Supply: 100–240 V AC, 50/60 Hz, 10 W

Handheld Transmitter Specifications

Oscillator Mode: PLL Phase-Locked Frequency Synthesizer
• RF Power Output: 8 mW / 15 mW (regulation dependent)
• Emitted Harmonic Radiation: < -63 dBm
• Frequency Response: 50 Hz – 18 kHz
• Max. Input SPL: 130 dB
• Capsule: Dynamic coil
• Bandwidth: 80 MHz
• Max. Deviation: ±45 kHz
• Current Consumption: <110 mA
• Power Supply: 2 × AA batteries (1.5 V each)
