AXM 2900

( 0 )

United States dollar ($) - USD

United States dollar ($) - USD

The AUX AXM 2900 is the most cost-effective one-to-two true diversity wireless microphone system in its class, engineered for small-scale professional performances, school events, and mobile setups. With dual-CPU microcomputer control, intelligent DPLL frequency synthesis, and advanced interference suppression, the AXM 2900 ensures clear, uninterrupted transmission even in challenging outdoor environments. Its true diversity architecture and high-sensitivity circuitry deliver stable, high-fidelity audio with a wide 200-meter reception range.

Frequency Range (610–670 MHz UHF): Customizable with 100 + 100 channels
• True Diversity Receiver: Dual antenna system with secondary frequency conversion for dropout-free reception
• High-Quality Audio: 60 Hz – 18 kHz response, THD <0.4%, wide dynamic range >108 dB
• Smart Operation: LCD display, auto noise control, one-touch frequency switching, and feedback suppression
• Professional Connectivity: Balanced XLR and 6.3 mm outputs for flexible integration
• Reliable Build: Rugged receiver powered by 100–240 V AC with 10 W consumption

ENQUIRY!

Categories: AUX Xtreme Modulation Series, Microphones

Tag: electronic

Specifications
Reviews (0)

Specifications

System Specifications

Carrier Frequency Range: 610–670 MHz UHF (customizable)
• Number of Channels: 100 + 100 adjustable frequency points
• Bandwidth: 50 MHz
• Modulation: FM
• Oscillator: PLL Phase-Locked Frequency Synthesizer
• Frequency Stability: ±0.0005%
• Sensitivity: >60 dB S/N at 6 dBµV input, 25 kHz offset
• Max. Frequency Deviation: ±45 kHz
• Frequency Response: 60 Hz – 18 kHz (±3 dB)
• Dynamic Range: >108 dB
• THD (1 kHz): <0.4%
• Operating Range: Up to 200 m (open space)
• Output Voltage: Balanced -20 dBV/100 Ω; Unbalanced -4 dBV/5 kΩ
• Output Connectors: 1 × XLR balanced, 1 × 6.3 mm unbalanced
• Power Supply: 100–240 V AC, 50/60 Hz, 10 W

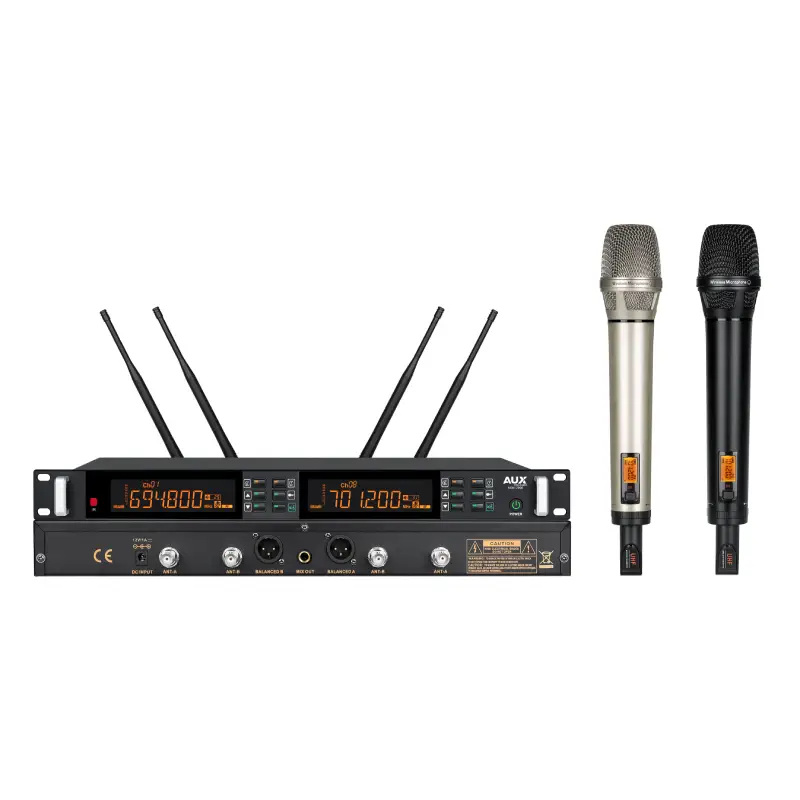

Handheld Transmitter Specifications

Oscillator Mode: PLL Phase-Locked Frequency Synthesizer
• RF Power Output: 8 mW / 15 mW (regulation dependent)
• Emitted Harmonic Radiation: < -63 dBm
• Frequency Response: 50 Hz – 18 kHz
• Max. Input SPL: 130 dB
• Capsule: Dynamic coil
• Bandwidth: 80 MHz
• Max. Deviation: ±45 kHz
• Current Consumption: <110 mA
• Power Supply: 2 × AA batteries (1.5 V each)
