AUX ATX405 + AX115T

( 0 )

United States dollar ($) - USD

United States dollar ($) - USD

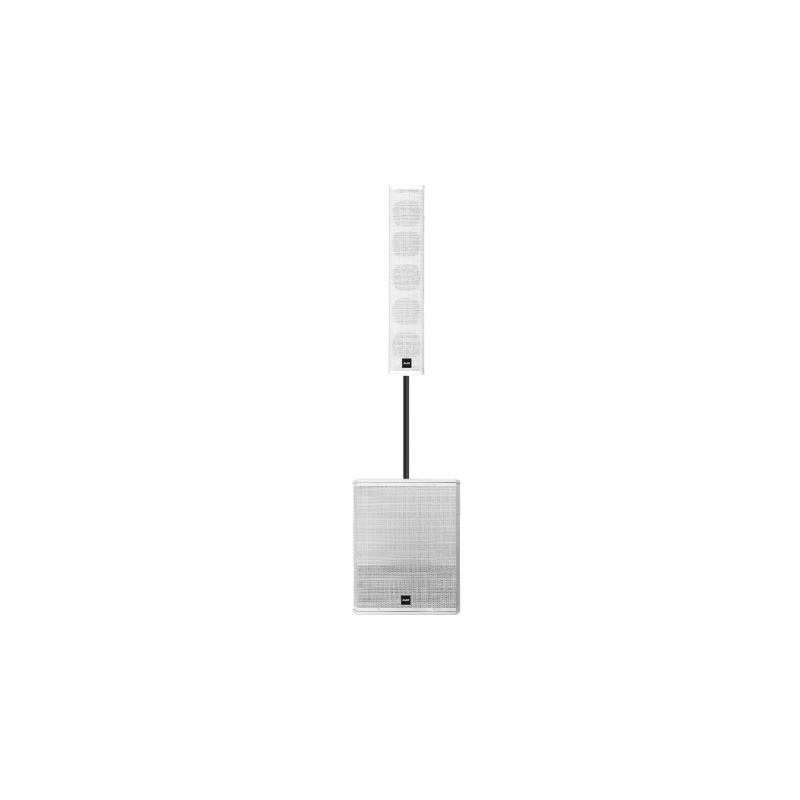

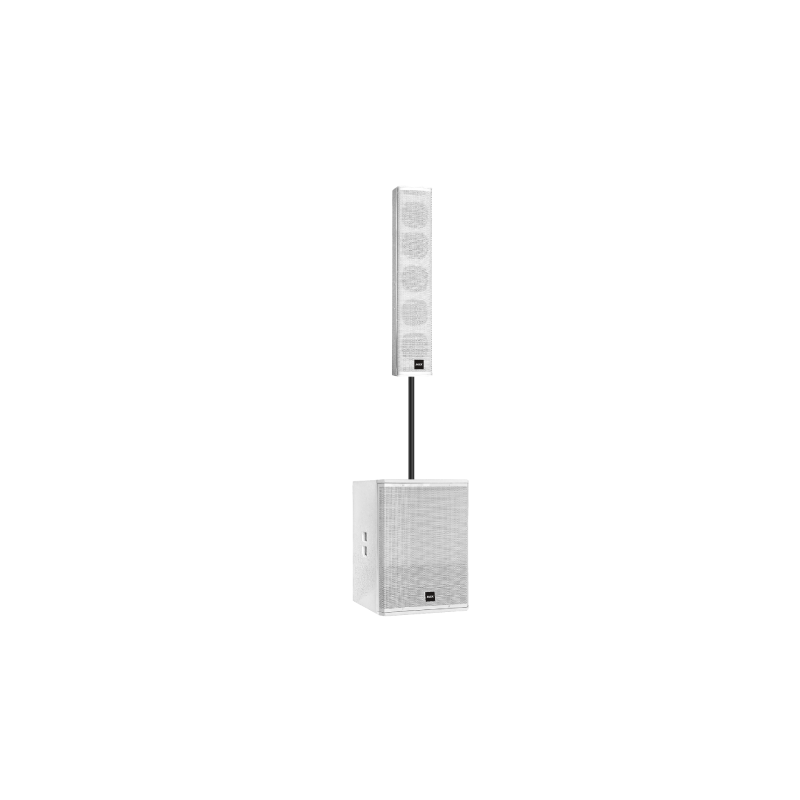

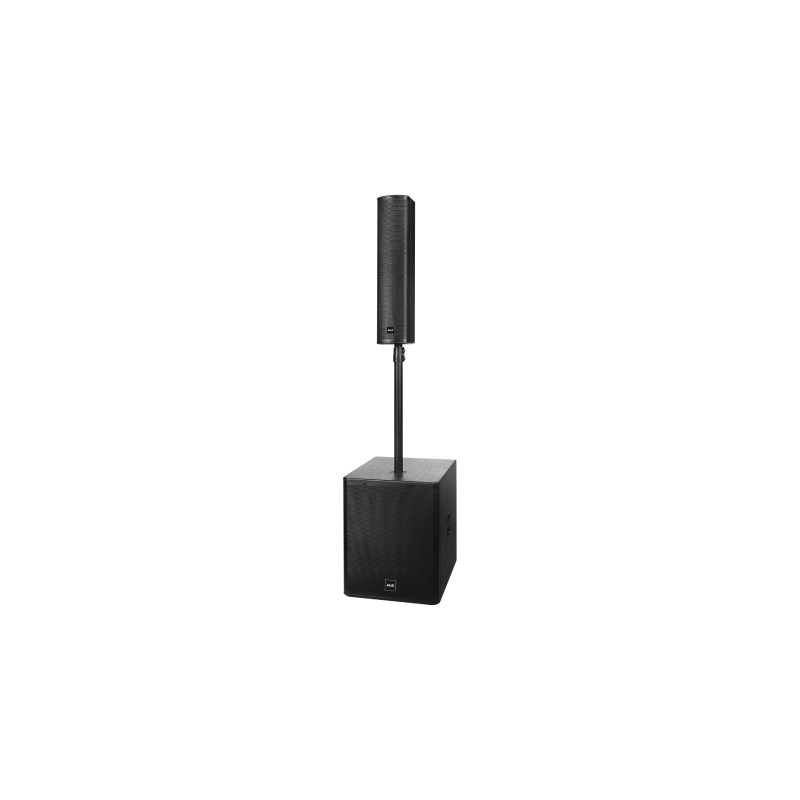

The AUX AXCENT Series ATX405 + AX115T is a premium compact column + subwoofer system engineered for professional FOH sound, live performances, and fixed installations. Featuring a 4″ × 4 + 1″ neodymium column top with articulate vocal clarity, paired with a powered 15″ subwoofer delivering deep, controlled bass, the system achieves up to 128 dB SPL with stunning accuracy.

Equipped with a 1200W RMS Class-D amplifier and FIR DSP presets, the AX115T subwoofer drives both the sub and the passive ATX405 top, ensuring seamless crossover, optimized coverage, and reliable performance. With rugged birch plywood construction, PowerCon™ connectivity, and easy satellite linking, the AXCENT Series is designed for touring, rental, houses of worship, and international venues that demand world-class sound reinforcement in a portable format.

Powerful 2400W Peak System: Active 15″ subwoofer (AX115T) with built-in DSP and amplification for both sub and column top

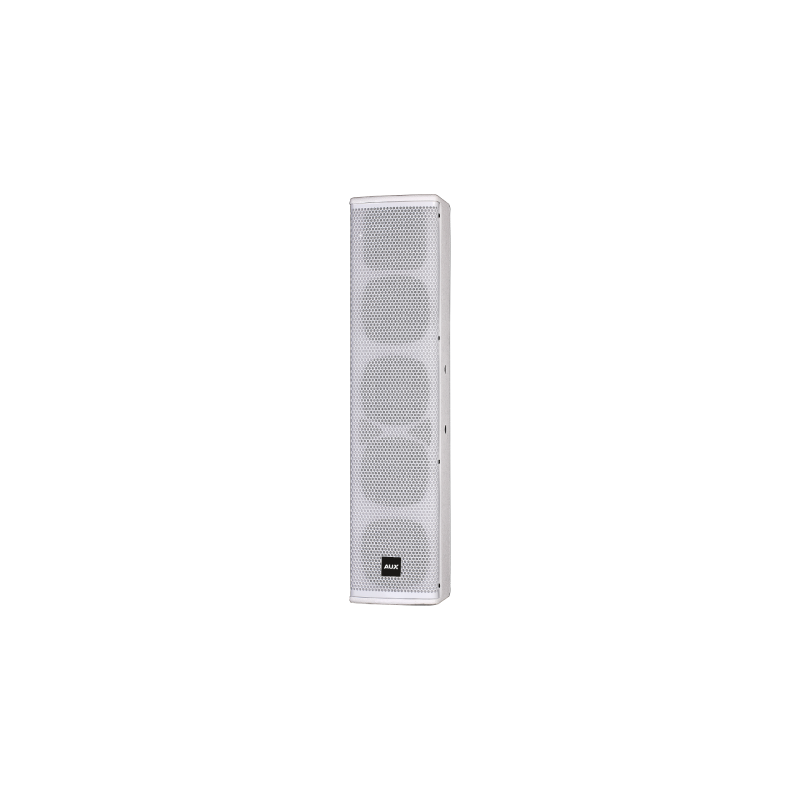

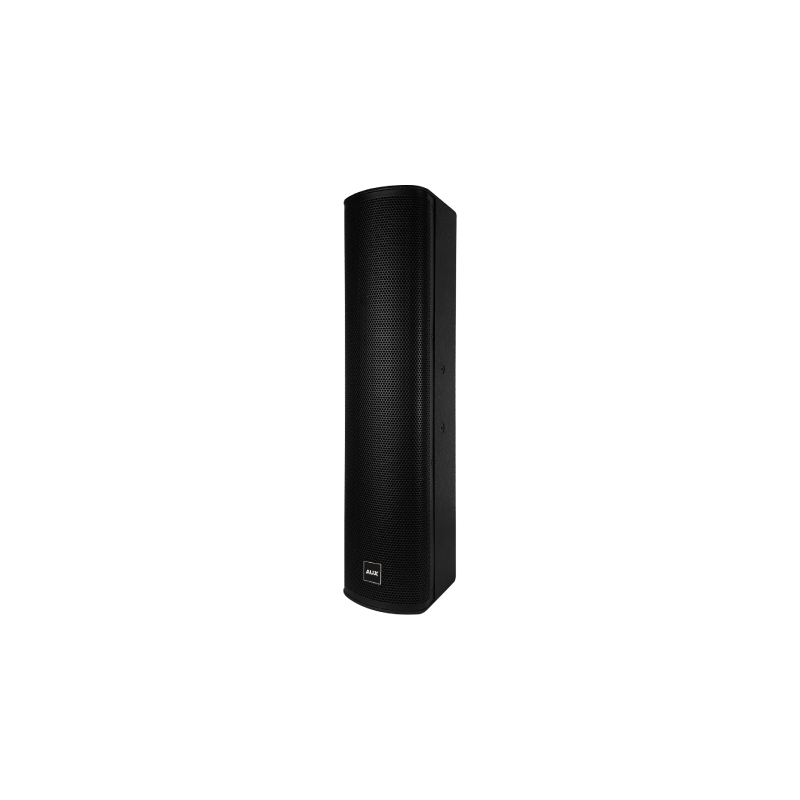

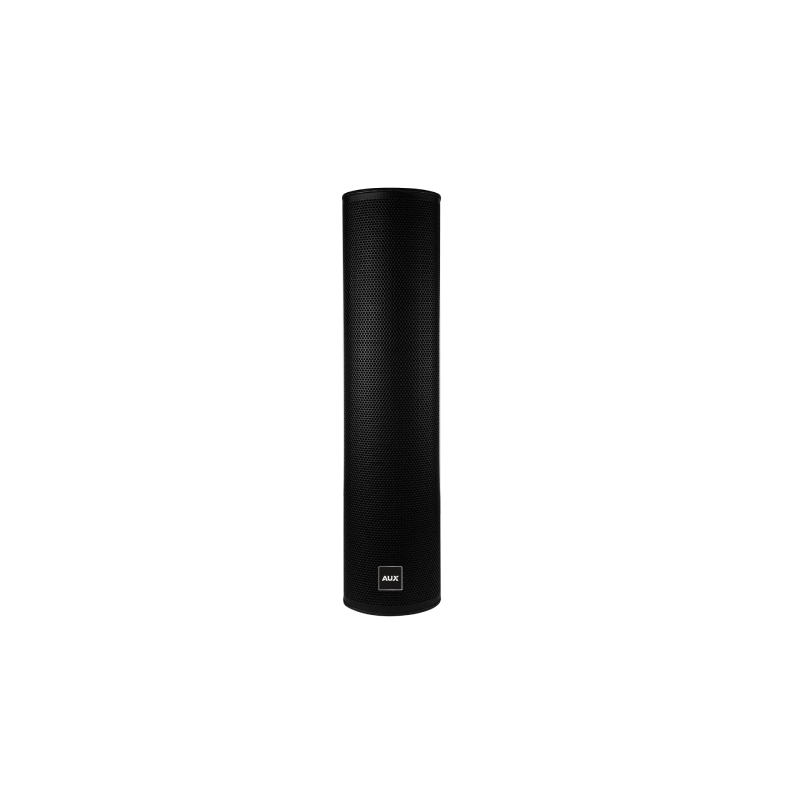

Articulate Column Clarity: ATX405 passive 4″ × 4 + 1″ design with 450W peak handling, ideal for vocals and live instruments
FIR DSP Precision: Factory presets with optimized crossover and user customization for different applications

Scalable & Rugged Build: Compact birch plywood enclosures with Polyurea finish, portable yet road-ready

ENQUIRY!

Categories: Axcent Series, Column Loud Speakers

Tag: electronic

Specifications
Reviews (0)

Specifications

Specification	Column Top (ATX405)	Subwoofer (AX115T)
System Type	Passive 4″ × 4 + 1″ Column Loudspeaker	–
Frequency Range	90 Hz – 20 kHz	–
Frequency Response (±3 dB)	100 Hz – 18 kHz	45 Hz – 180 Hz
Sensitivity	98 dB SPL (1W/1m)	100 dB (1W/1m)
Power Handling	450W RMS	–
Configuration	4 × 85 mm woofers (25 mm VC, Neodymium) + 1 × 25 mm HF tweeter	–
Maximum SPL (Peak)	119 dB	128 dB
Coverage	80° × 60°	–

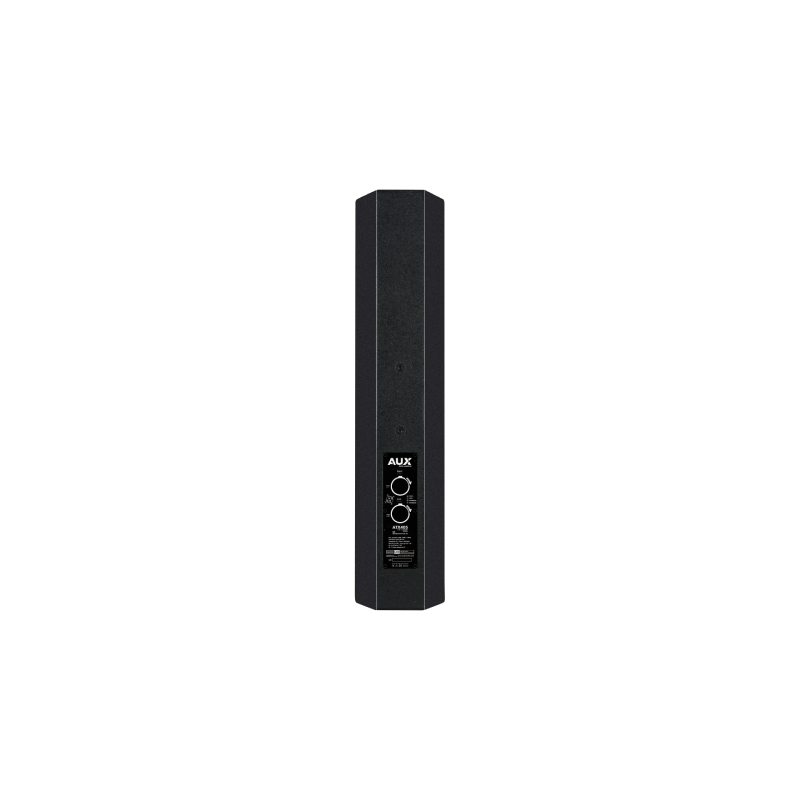

Input Connectors	2 × Neutrik® NL4MP	–
Cabinet Dimensions (H×W×D)	667 × 150 × 175 mm	–
Net Weight	8.5 kg	31 kg
LF Driver	–	1 × 15″ woofer, 4″ VC, 220 mm magnet
Amplifier Type	–	Class-D, FIR DSP controlled
Power Output	–	1200W RMS / 2400W Peak @ 8Ω
DSP	–	FIR filters with factory presets + user options
Signal Input / Link	–	XLR Balanced
Satellite Output	–	Neutrik® NL4MP
Power Input	–	90–265 V AC, 50/60 Hz (Auto-sensing SMPS)
Power Connector	–	PowerCon™
Dimensions (H×W×D)	–	540 × 440 × 540 mm
