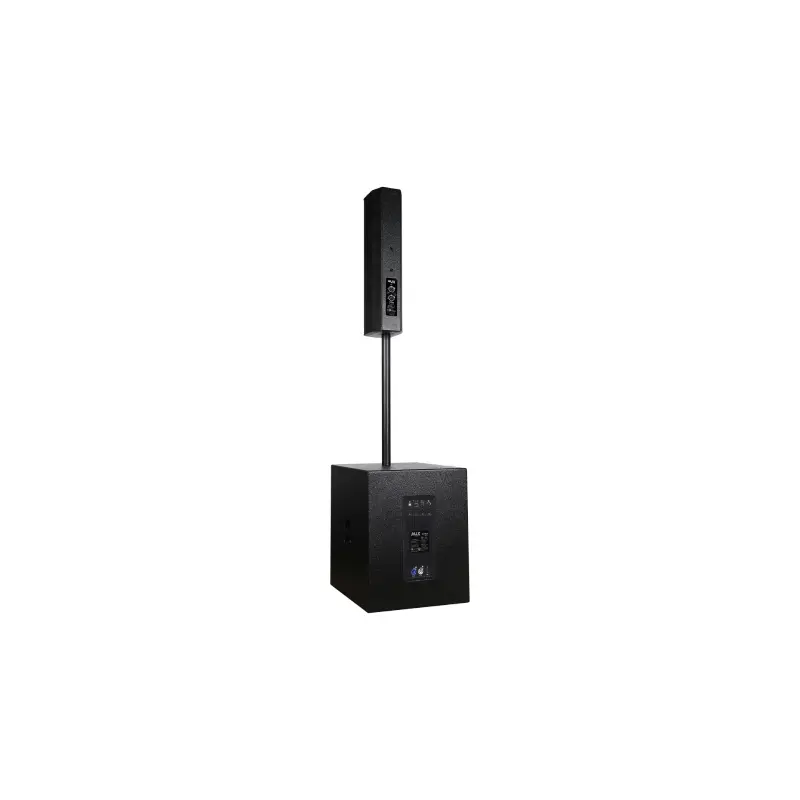

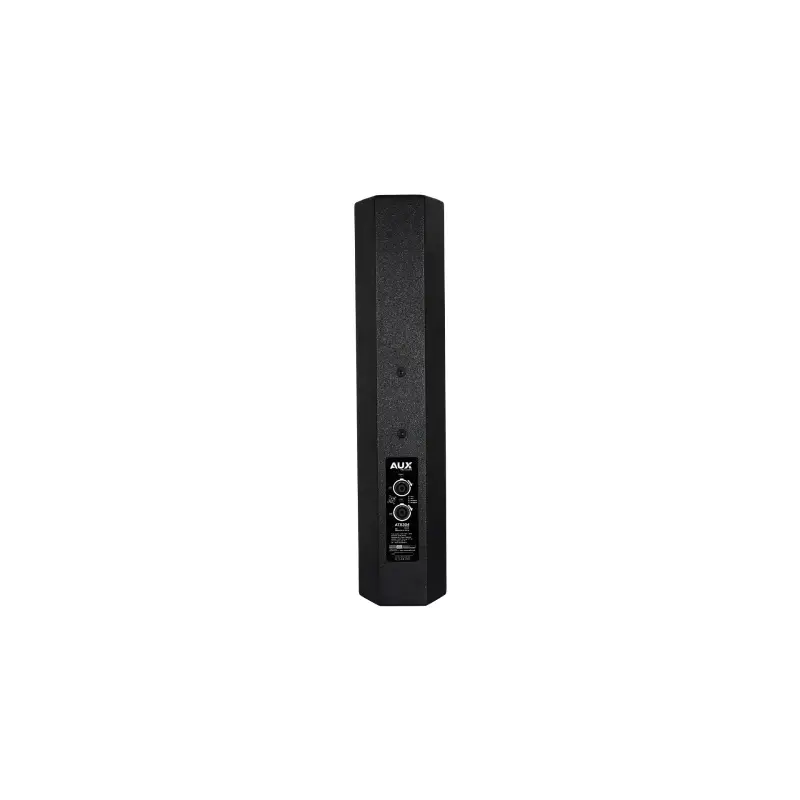

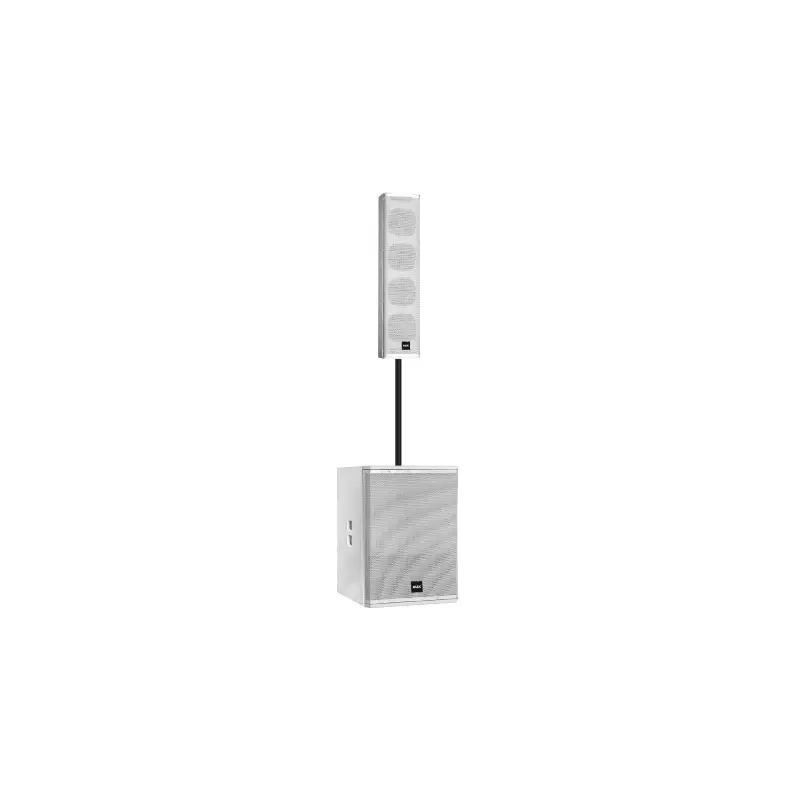

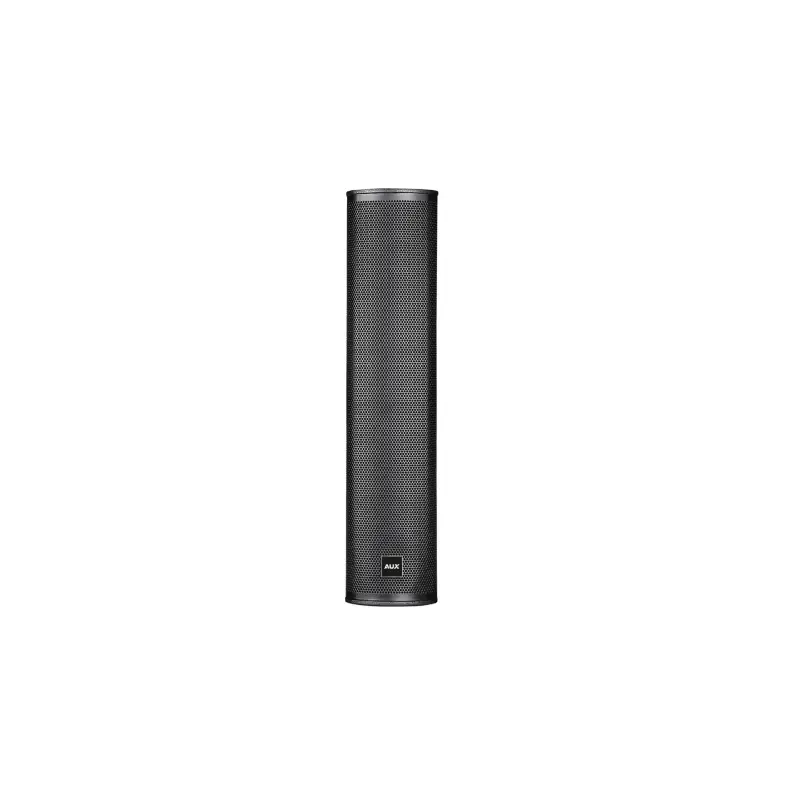

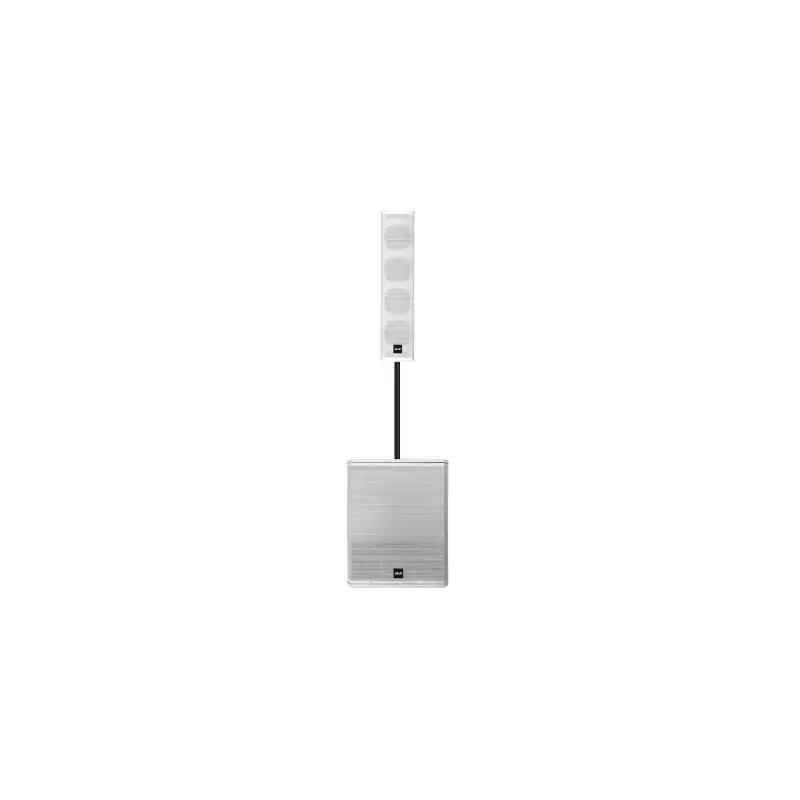

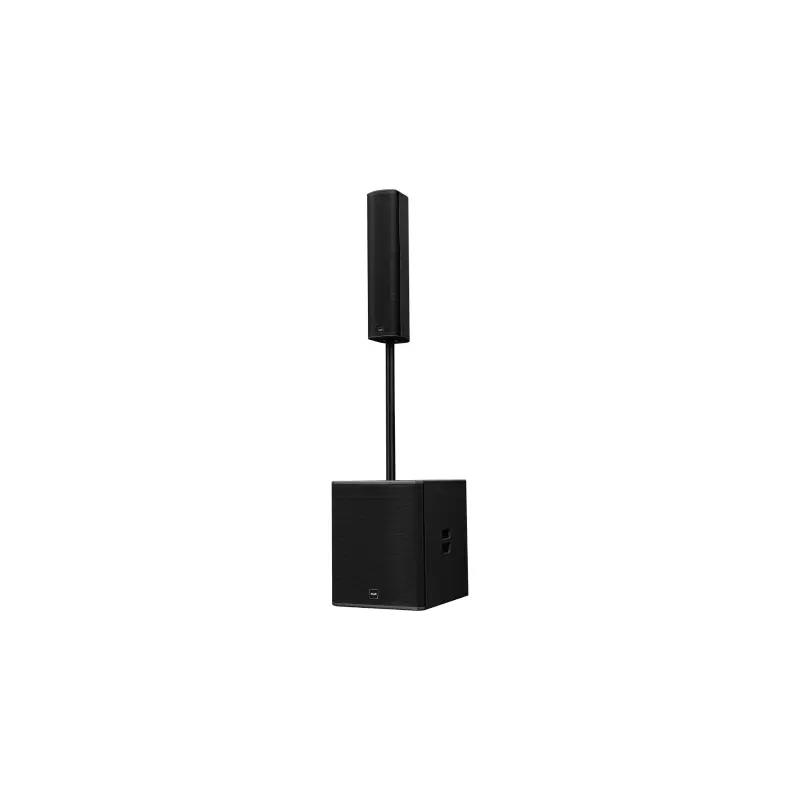

AUX ATX304 + AX112T

( 0 )

United States dollar ($) - USD
  • United States dollar ($) - USD

The ATX304 + AX112T system blends the clarity of a compact column with the depth of a 12″ powered subwoofer, creating a versatile, plug-and-play solution for modern sound reinforcement. Designed for speech, live vocals, acoustic sets, and small-to-medium performance spaces, this setup delivers crisp highs, natural mids, and tight low-end extension without sacrificing portability. With FIR DSP processing, precision driver pairing, and rugged road-ready construction, it’s engineered to perform reliably across houses of worship, corporate events, clubs, and touring applications.

Compact Column + 12″ Sub System – Delivers crystal-clear vocals with powerful low-end in one portable solution
1000W RMS Class-D Amplification with FIR DSP – Precision processing ensures balanced, distortion-free performance
Wide 80° × 60° Coverage – Uniform sound distribution for speech, live music, and professional events
Rugged & Road-Ready Design – Lightweight column and durable birch subwoofer with premium Polyurea® finish

Specifications



Specification Column Top (ATX304) Subwoofer (AX112T)
System Type Passive 3″ × 4 Column Loudspeaker
Frequency Range 100 Hz – 20 kHz
Frequency Response (±3 dB) 150 Hz – 18 kHz 45 Hz – 180 Hz
Sensitivity 93 dB SPL (1W/1m) 100 dB (1W/1m)
Power Handling 450W RMS
Configuration 4 × 70 mm drivers with 20.5 mm VC
Maximum SPL (Peak) 105 dB 127 dB
Coverage 80° × 60°
Input Connectors 2 × Neutrik® NL4MP
Cabinet Dimensions (H×W×D) 605 × 108 × 149 mm
Net Weight 5.2 kg 26 kg
LF Driver 1 × 12″ woofer, 4″ VC, 220 mm magnet
Amplifier Type Class-D
Power Output 1000W RMS / 2000W Peak @ 8Ω
DSP FIR filters with factory presets + customization
Signal Input / Link XLR Balanced
Satellite Output Neutrik® NL4MP
Power Input 90–265 V AC, 50/60 Hz (Auto-sensing SMPS)
Power Connector PowerCon™
Dimensions (H×W×D) 455 × 372 × 457 mm
