ATX405S + AX118T

( 0 )

United States dollar ($) - USD

United States dollar ($) - USD

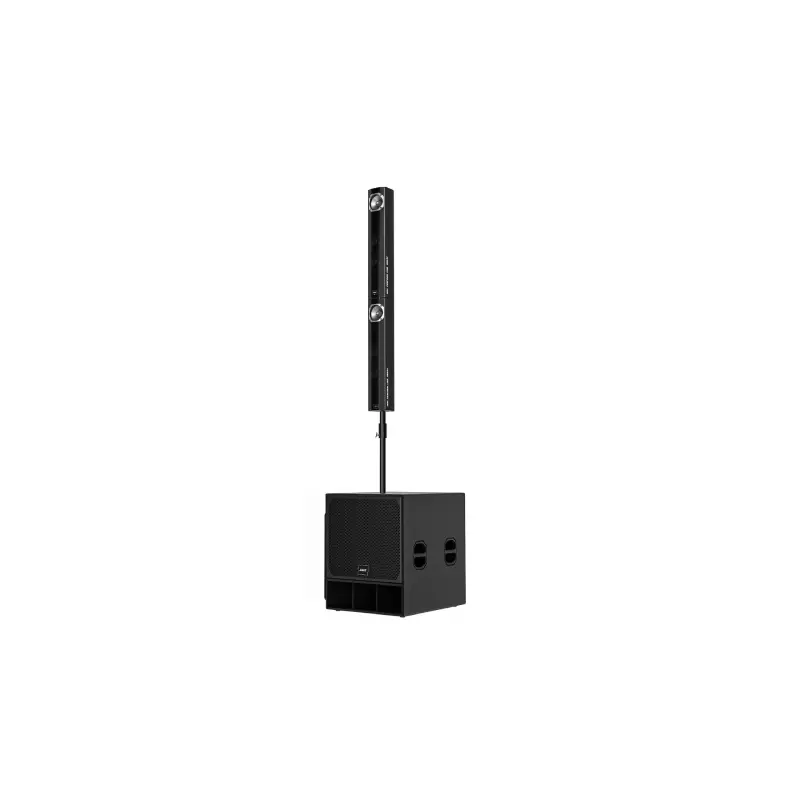

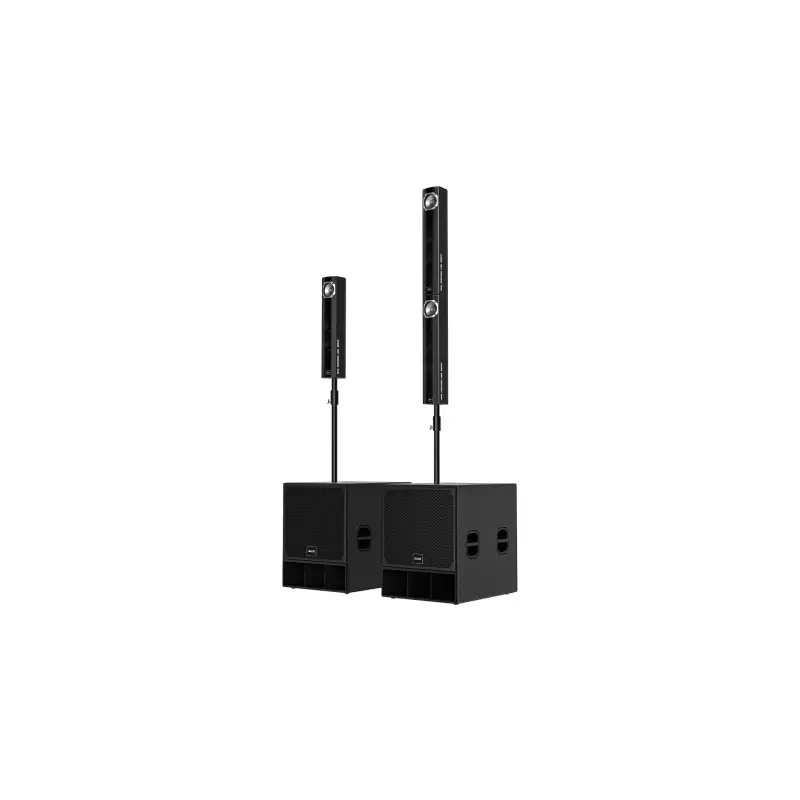

The AUX Audio AXCENT Series flagship system delivers uncompromising power and precision. Featuring dual ATX405S column tops paired with the AX118T active 18″ subwoofer, this system produces breathtaking clarity, deep low-end punch, and wide 80° × 60° coverage. Powered by advanced FIR DSP and Class-D amplification, it reaches up to 136 dB SPL, making it ideal for live concerts, touring rigs, and high-end installations. Rugged birch plywood cabinets with touring-grade Polyurea coating ensure durability on the road, while satellite outputs simplify system expansion. The AXCENT Series sets the benchmark for premium professional sound reinforcement.

Flagship FOH Solution — Dual ATX405S tops + AX118T sub deliver concert-grade output
Powerful & Precise — 2400W Class-D amplification with FIR DSP for superior control
Scalable Coverage — Wide 80° × 60° dispersion with 136 dB SPL peak output
Touring-Grade Build — Birch plywood enclosures with durable Polyurea coating

ENQUIRY!

Categories: Axcent Series, Column Loud Speakers

Tag: electronic

Specifications
Reviews (0)

Specifications

Specification	Column Top (ATX405S)	Subwoofer (AX118T)

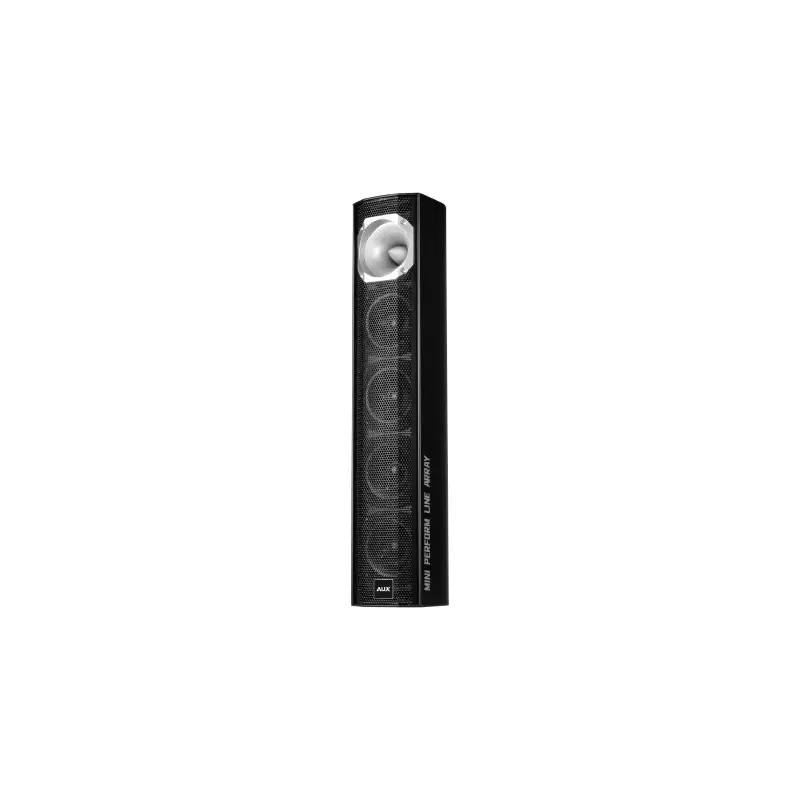

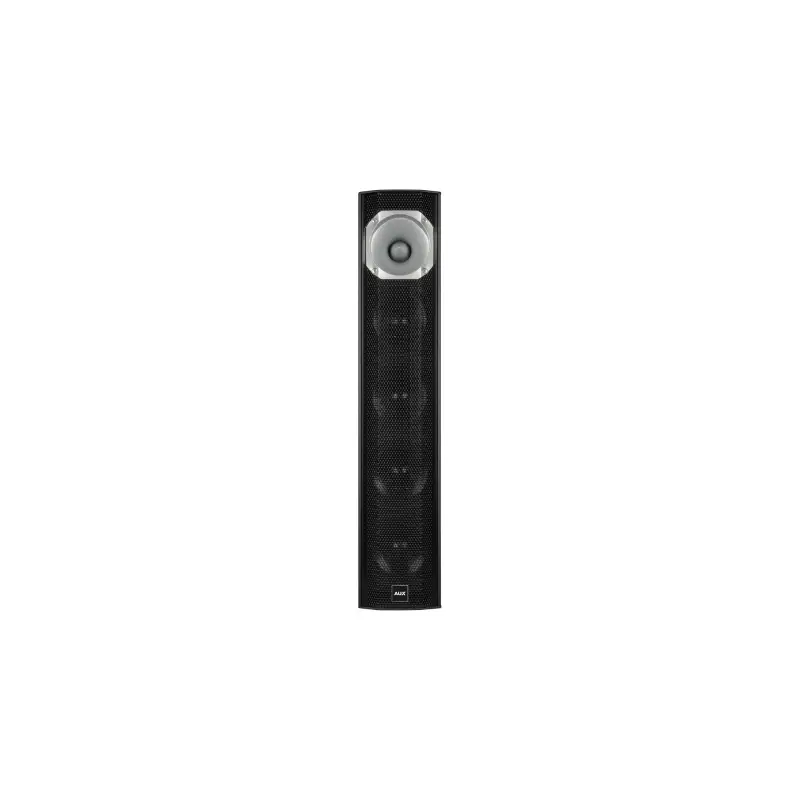

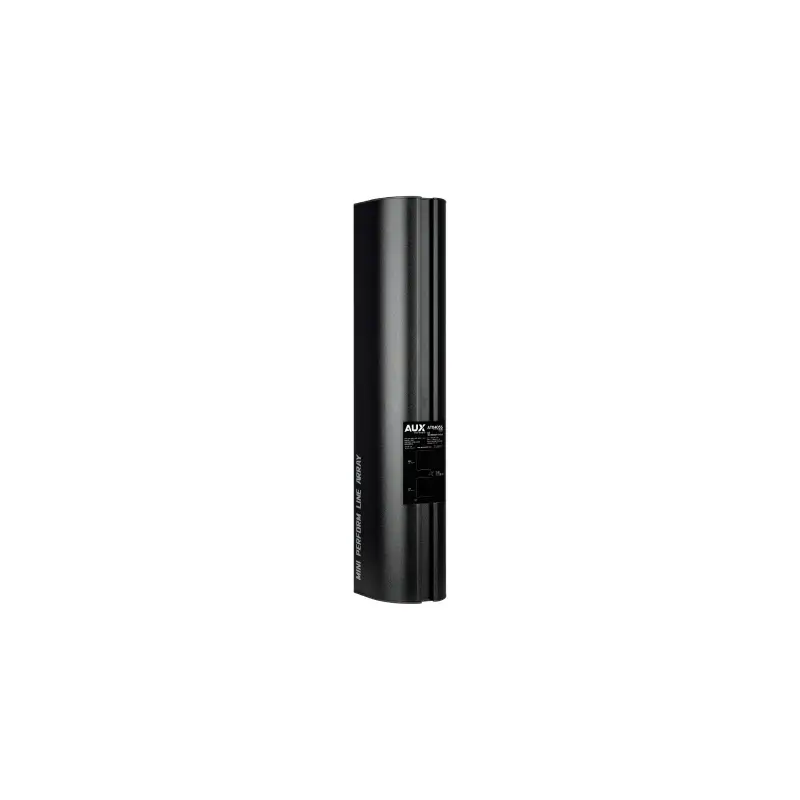

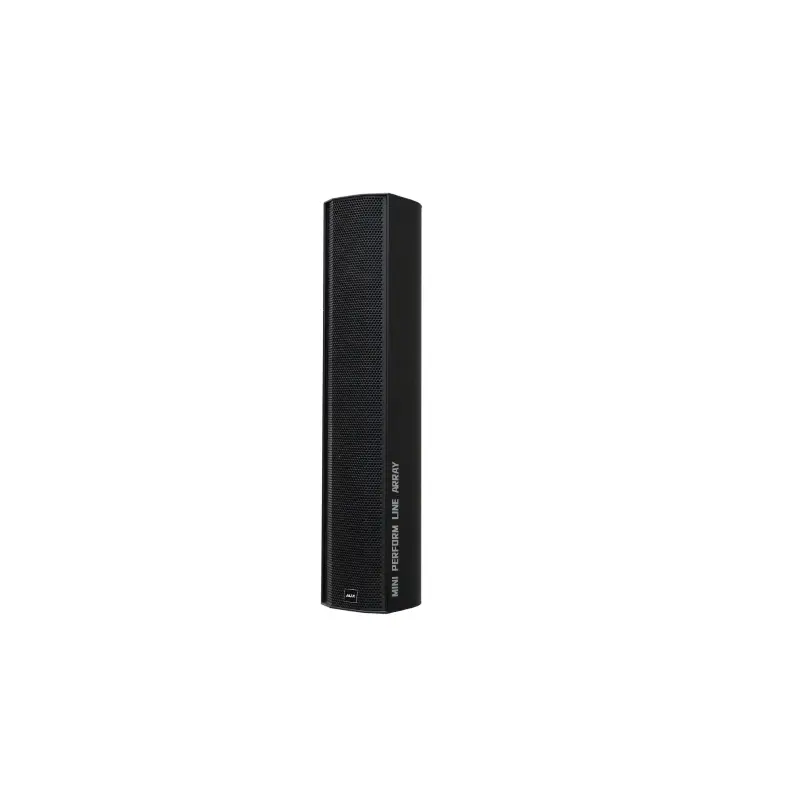

System Type	Passive 4″ × 4 + 1.5″ Column Speaker	–
Frequency Range	90 Hz – 20 kHz	–
Frequency Response (±3 dB)	100 Hz – 18 kHz	50 Hz – 450 Hz
Sensitivity	106 dB SPL (1W/1m)	104 dB (1W/1m)
Rated Power	800W RMS / 1600W Peak	1200W RMS / 2400W Peak
Configuration	1 × 38 mm VC / 90 mm magnet tweeter + 4 × 85 mm woofers / 25 mm VC	1 × 18″ woofer, 4″ VC, 220 mm magnet
Maximum SPL	130 dB SPL	136 dB
Coverage	80° × 60°	–
Input Connectors	2 × Neutrik® NL4MP	Double Neutrik® NL4MP
Dimensions (H × W × D)	625 × 125 × 145 mm	655 × 530 × 670 mm
Net Weight	9 kg	48.5 kg
Amplifier Type	–	Class D
Satellite Out	–	800W RMS @ 8Ω
DSP	–	FIR filters with factory presets + user control
Audio I/O	–	XLR Balanced
Power I/O	–	Double Neutrik® NL4MP
AC Input	–	90–265 V AC, 50/60 Hz, PowerCon™ (Auto-sensing SMPS)
Cabinet	–	15 mm birch plywood, Polyurea coated
